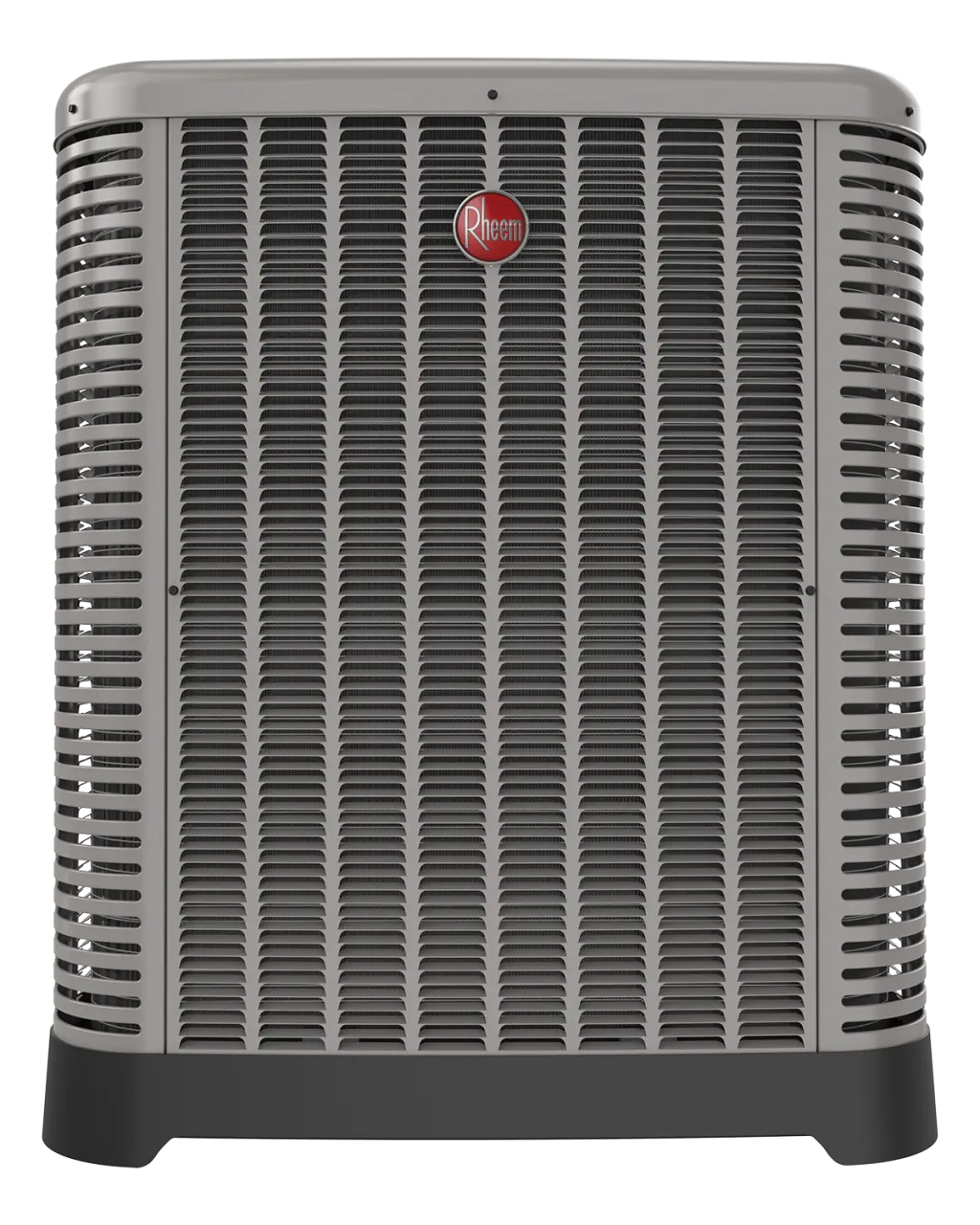

RP17AY Endeavor Line Classic Plus Series Top-Discharge Universal Heat Pump
MODEL RP17AY60AJVCA
Conditional Parts (Registration Required): Ten (10) Years
- Cooling Efficiencies up to: 17 SEER2/ 11.7 EER2
- Heating Efficiencies up to: 9.5 HSPF2
- Nominal Sizes: 2 to 5 Ton [7.0 to 17.6 kW]
- Cooling & Heating Capacities: 22.0 to 57 kBTU [6.5 to 16.7 kW]
- Refrigerant Type: R-454B
Select Tonnage
2
Tons
3
Tons
4
Tons
5
Tons
Models
SKU RP17AY60AJVCA
Warranty Years 10
Model RP17AY Endeavor Line Classic Plus Series Top-Discharge Universal Heat Pump
Tonnage 5 Tons
WiFi Connectivity Yes
Depth 35.75"
Height 39"
Width 35.75"
HSPF2 Rating 9.50
Nominal Capacity in BTU/h 60000 BTU/h
Min Tonnage 2 Tons
Max Tonnage 5 Tons
Flexible and Universal Install Compatibility:
- Works with nearly any R-454B HVAC System—including Rheem EcoNet® Enabled systems and non communicating systems
- Install with any indoor system component via a Rheem algorithm (IMPORTANT: The indoor system component CFM must match the requirement of the outdoor system component)
- Install as a Universal Replacement with minimal alterations (R-454B coil only—with TXV)
Quiet Operation as low as 55 dBA: Offers sound dampening features such as a sound blanket, refrigerant tubing design, fan blade approach and innovative compressor and drive technologies—ensure that as efficiency goes up, sound levels stay low.
EcoNet Enabled: Automatic system configuration and optimization.
PlusOne® Diagnostics & Bluetooth® Connectivity: With the Rheem Contractor & EcoNet Apps, built-in technology makes advanced set-up, monitoring, troubleshooting, and repairing the product easier than ever before.
PlusOne Variable Speed Twin Rotary Compressor and Inverter Drive:
- Features variable speed operation from 35% to 100% capacity with the EcoNet Smart Thermostat or with legacy and other thermostats when the utility 1 & 2 jumpers are installed and using the Rheem algorithm.
- Provides precise temperature control, advanced humidity control and greater efficiency.
Brushless DC Condenser Motors (BLDC): Enhances reliability and allows for easier serviceability Swept Wing Fan Technology: Features quieter operation and improved unit acoustics.
7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability.
Traditional Refrigerant Piping: Allows for use of existing refrigerant line sets for further ease of replacement installation flexibility.
PlusOne Refrigerant Detection System™: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation— if excess refrigerant is detected.
Conditional Parts (Registration Required): Ten (10) Years
